一些電容表面、形狀等看起來差不多，但其本質是完全不同的。就拿安規電容和普通電容舉例說明，安規電容與普通電容有什么區別。

　　The surface and shape of some capacitors look similar, but their essence is completely different. Take the safety capacitance and ordinary capacitance as examples to illustrate the difference between safety capacitance and ordinary capacitance.

　　1.應用范圍不同

　　Different applications

　　安規電容主要為為X電容和Y電容。

　　The safety capacitance is mainly x capacitance and Y capacitance.

　　X電容為抑制差模干擾，一般跨接與L與N之間（N代表零線，L代表火線），常見的是X1電容和X2電容。每個等級的耐壓不同。失效時不會對人體產生危害。

　　In order to suppress the differential mode interference, X capacitor is usually bridged between L and n (n represents the zero line, l represents the live wire), and the common ones are X1 capacitor and X2 capacitor. The withstand voltage of each grade is different. Failure will not cause harm to human body.

　　安規Y電容又分為Y1電容和Y2電容，為抑制共模干擾，Y電容是安規系列的電容，在火線和地線之間以及零線和地線之間并接的電容統稱Y電容。一般會有漏電流。

　　Safety y-capacitor is divided into Y1 capacitor and Y2 capacitor. In order to suppress common mode interference, y-capacitor is the capacitance of safety regulation series. The capacitance connected in parallel between live wire and ground wire and between neutral line and ground wire is collectively referred to as y capacitance. There will be leakage current.

　　安規電容主要適用于電源供電的電子儀器和電子設備，應用于開關、觸點等產生火花放電的部位，能夠起吸收脈沖干擾和減少電磁騷擾的作用。

　　Safety capacitor is mainly used for power supply of electronic instruments and electronic equipment, applied to switches, contacts and other parts of spark discharge, can absorb pulse interference and reduce electromagnetic interference.

　　普通電容器廣泛應用于各類電子設備、微分電機、電動工具、照明燈具、空調器、電冰箱、洗衣機等家用電器以及電力系統中。

　　Ordinary capacitors are widely used in all kinds of electronic equipment, differential motors, power tools, lighting lamps, air conditioners, refrigerators, washing machines and other household appliances and power systems.

　　2.外觀不同。

　　Different appearance.

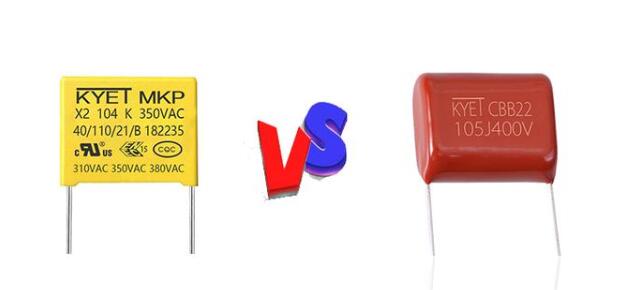

　　像X類安規電容，一般都安裝在塑膠外殼內，普通的CBB電容，多數都是環氧樹脂包封。

　　For example, class X safety capacitors are generally installed in plastic cases. For ordinary CBB capacitors, most of them are encapsulated in epoxy resin.

　　3.認證不同。

　　Certification is different.

　　普通的CBB類電容，它不需要過任何認證，但安規電容一般要過很多認證，比如CQC、VDE、 UL、CUL等，而且過的認證越多越好。

　　Ordinary CBB capacitors do not need any certification, but safety capacitors generally have to pass a lot of certification, such as CQC, VDE, UL, cul, etc., and the more certification, the better.

　　4.價格不同。

　　Different prices.

　　同容量、同電壓，安規電容相對要貴一些，因?yàn)檫@些電容每年要花大量的認證費用，而且制作工藝也不同。

　　With the same capacity and voltage, safety capacitors are relatively expensive, because these capacitors have to spend a lot of certification fees every year, and the manufacturing process is also different.

　　所以說，不同型號的電容有著不同的功能，只要我們根據使用需求選擇適合的電容即可。

　　Therefore, different types of capacitors have different functions, as long as we choose the appropriate capacitor according to the use needs.
